Foundation Supportworks by Woods

Commercial Helical
Anchors / Tiebacks

Screw Anchor and Soil Nailing in Illinois & Missouri

Helical anchors are a factory-manufactured steel foundation system consisting of a central shaft with one or more helix-shaped bearing plates, commonly referred to as blades, welded to the lead section. Extension shafts, with or without additional helix plates, are used to extend the anchor into competent load-bearing soils. Helical anchors are advanced ("screwed") into the ground with the application of torque.

The terms helical piles, screw piles, helical piers, helical anchors, helix piers, and helix anchors are often used interchangeably by specifiers. However, the term "pier" more often refers to a helical foundation system loaded in axial compression, while the term "anchor" more often refers to a helical foundation system loaded in axial tension.

Design Considerations

Helical anchors are a factory-manufactured steel foundation system consisting of a central shaft with one or more helix-shaped bearing plates, commonly referred to as blades, welded to the lead section. Extension shafts, with or without additional helix plates, are used to extend the anchor into competent load-bearing soils. Helical anchors are advanced ("screwed") into the ground with the application of torque.

The terms helical piles, screw piles, helical piers, helical anchors, helix piers, and helix anchors are often used interchangeably by specifiers. However, the term "pier" more often refers to a helical foundation system loaded in axial compression, while the term "anchor" more often refers to a helical foundation system loaded in axial tension.

Determination of Capacity

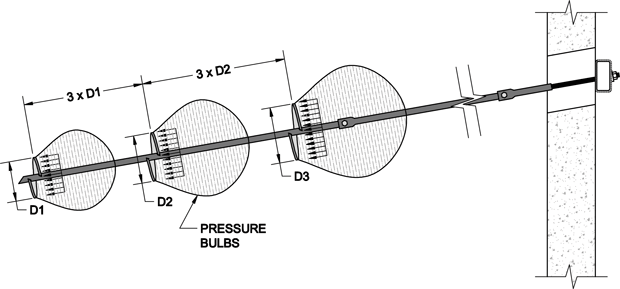

The ultimate capacity of a helical anchor may be calculated using the traditional bearing capacity equation:

Qu = ∑ [Ah (cNc + qNq)]

Where:
Qu = Ultimate Anchor Capacity (lb)
Ah = Area of Individual Helix Plate (ft2)
c = Effective Soil Cohesion (lb/ft2)
Nc = Dimensionless Bearing Capacity Factor = 9
q = Effective Vertical Overburden Pressure (lb/ft2)
Nq = Dimensionless Bearing Capacity Factor

Total stress parameters should be used for short-term and transient load applications and effective stress parameters should be used for long-term, permanent load applications. A factor of safety of 2 is typically used to determine the allowable soil bearing capacity, especially if torque is monitored during the helical anchor installation.

Like other deep foundation alternatives, there are many factors to be considered in designing a helical anchor foundation. Foundation Supportworks recommends that helical anchor design be completed by an experienced geotechnical engineer or other qualified professional.

Another well-documented and accepted method for estimating helical anchor capacity is by correlation to installation torque. In simple terms, the torsional resistance generated during helical anchor installation is a measure of soil shear strength and can be related to the bearing capacity of the anchor.

Qu = KT

Where:
Qu = Ultimate anchor Capacity (lb)
K = Capacity to Torque Ratio (ft-1)
T = Installation Torque (ft-lb)

The capacity to torque ratio is not a constant and varies with soil conditions and the size of the anchor shaft. Load testing using the proposed helical anchor and helix blade configuration is the best way to determine project-specific K-values. However, ICC-ES AC358 provides default K-values for varying anchor shaft sizes, which may be used conservatively for most soil conditions. The default value for the Model 150 Helical Anchor System (1.50" square shaft) is K = 10 ft-1.

-- View Our Helical Anchors and Tiebacks Product Specifications document --

Anchor Capacity

The cross section of a square shaft is very compact which can allow the anchor to penetrate more easily through the soil. This compact shape also reduces the stiffness of the cross section and introduces more potential for buckling. These two factors make square shaft helical anchors better suited for tension loads. Foundation Supportworks, Inc. therefore recommends their use mainly for these types of applications. Square shaft helical anchors (piles) used in compression should be evaluated on a case by case basis by the project engineer.

Mechanical Axial Capacity (see note):

  • Allowable Tension = 26.5 kips*

* The mechanical tensile capacity of the Model 150 Helical Anchor System is limited by the allowable stress levels dictated by AISC for a high strength bolt in double shear. The allowable tensile capacity of the shaft is actually much higher than this Allowable Tension value.

Torque Limited Axial Design Capacities based on Ultimate Torsional
Resistance of Anchor Shaft = 6,340 ft-lbs**:

  • Ultimate Soil Capacity = 63.4 kips** (with K = 10 ft-1, see note)
  • Allowable Soil Capacity = 31.7 kips (FOS = 2, Allowable System Capacity therefore governed by mechanical capacity = 26.5 kips*)

** This Ultimate Torsional Resistance and its corresponding Torque Limited Capacities are based on laboratory test results from an IAS accredited facility and may only be approached in idealized conditions. Plastic torsional deformations can begin in the anchor shaft near 4,600 ft-lbs. This value may be reached and exceeded in the field by maintaining alignment between the anchor and the drive head, limiting impact forces and torque reversal, and reducing the tendency to "crowd" (push down on) the anchor. Installation through soils with obstructions or high variability may result in impact loading on the anchor. In these cases, achieving high torque values becomes more difficult and a further reduction in the Design Torque Limit may be appropriate.

Note

K = 10 ft-1 is a default value as published in ICC-ES AC358 which can, in many cases, be considered conservative. Higher capacities can often be achieved with site-specific load testing. Allowable capacities based on site testing shall not exceed the Mechanical Axial Capacity.

-- View Our Helical Anchors and Tiebacks Product Specifications document --

Model 150 Helical Anchor System

  • Outer Dimensions = 1.50" x 1.50"
  • Anchor Shaft Yield Strength = 90 ksi (min.)
  • Coupling Hardware: ¾" Grade 8 Bolt with Nut
  • Available Helix Blade Diameters = 6", 8", 10", 12" and 14"
  • Helix Blade Thickness = 0.375"
  • Termination Hardware: 1" Threaded Rod, Tensile Strength = 120 ksi (min.)

-- View Our Helical Anchors and Tiebacks Product Specifications document --

Model 175 Helical Anchor System

  • Outer Dimensions = 1.75" Round Corner Square Bar
  • Anchor Shaft Yield Strength = 90 ksi (min.)
  • Coupling Hardware: (2) ¾" Grade 8 Bolt with Nut
  • Available Helix Blade Diameters = 6", 8", 10", 12" and 14"
  • Helix Blade Thickness = 0.375"
  • Termination Hardware: 1" Threaded Rod, Tensile Strength = 120 ksi (min.)

-- View Our Helical Anchors and Tiebacks Product Specifications document --

Helix Blade Geometry

Foundation Supportworks' helical anchors feature blades manufactured with a true helix shape conforming to the geometry criteria of ICC-ES AC358. The leading and trailing edges of true helix blades are within one-quarter inch of parallel to each other and any radial measurement across the blade is perpendicular to the anchor shaft. A true helix shape along with proper alignment and spacing of the blades is critical to minimize soil disturbance during installation.

Conversely, blades that are not a true helix shape are often formed to a 'duckbill' appearance. These plates create a great deal of soil disturbance and do not conform to the helix geometry requirements of ICC-ES AC358 since their torque to capacity relationships are not well documented.
